H1-HKBMH1-HKBM

FP01

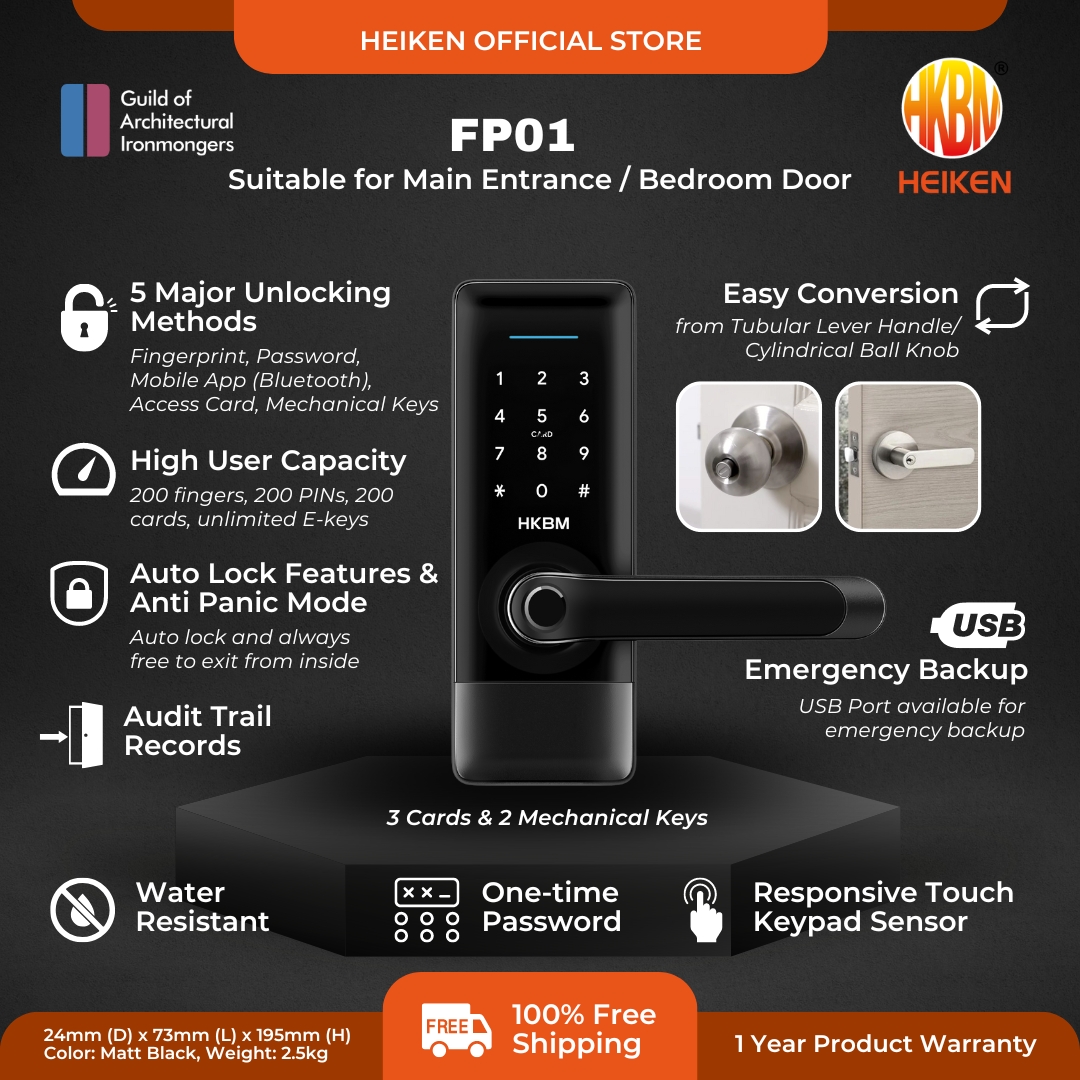

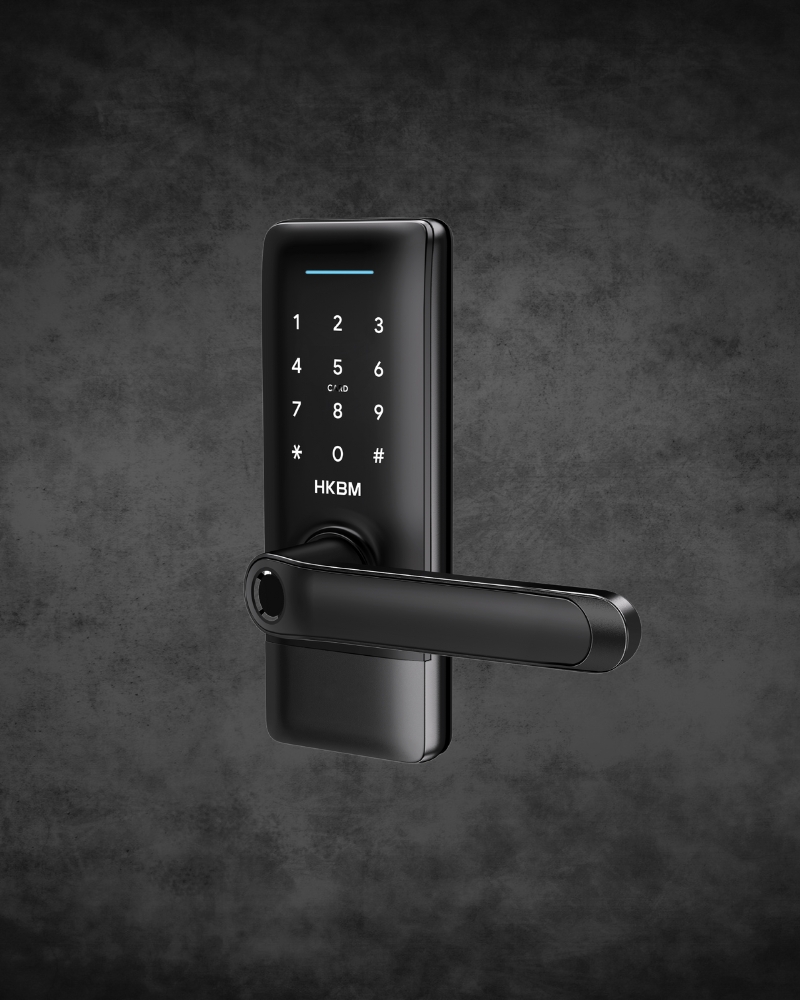

Heiken’s smart digital locks are always equipped with advanced features that offer simplicity and convenience to the user. The S800 – FP01 is a model of simple upgrade from traditional mechanical locks such as cylindrical and tubular locks, suitable for main entrances and bedroom doors. Installation is effortless and quick with merely no alteration on existing door. It takes door opening experience to the next level by offering multiple options such as Mobile Application (via Bluetooth), Antipeep password (PIN), Cards, Fingerprint, and Mechanical Keys. For emergencies, the micro-USB port and mechanical keys can be utilized. The S800 – FP01 has great features such as waterproof (IP55) surface, responsive number pad and fingerprint sensor, fast response, and robust structure. Still feeling insecure somehow? No problem. All records can be trailed from mobile phone. Free batteries are provided.

Description




General Features:

  • Area: Main Entrance (Wooden Door), Room Door
  • Hassle free upgrade from conventional cylindrical / tubular type mechanical lock
  • Autolock: Yes
  • Lock dimension: 24mm (D) x 73mm (L) x 195mm (H)
  • Colour: Matt Black
  • User Capacity: 200 fingers, 150 PINs, 200 cards, unlimited E-key
  • Latch: Anti friction latch in 60mm / 70mm length
  • Easy Installation & Set Up
  • Type C USB port available for emergency power when battery life is running out
  • Waterproof (IP55) on fingerprint sensor, PCBA board, motor & USB connector
  • Sensitive number pad & fingerprint sensor with loud response and unlock sound
  • Audit Trail available in mobile application



Main Functions:

  • Mobile Application (via Bluetooth) : Act as main administration; Mobile lock/unlock (e-key)
  • Antipeep password (PIN): It can be customized (4-9 digits); One-time dynamic password available (suitable for AirBnb); User capacity up to 150
  • Card: NFC Tag, Identity card (IC), Touch N Go card (TNG) and residential access card can be used to unlock; User capacity up to 200
  • Fingerprint: Semi-conductor biometrics; High recognition rate ~98.9%; User capacity up to 200
  • Mechanical keys: 2 provided; For emergency purposes



Technical Information

  • Power supply: 6V/4 x AA batteries
  • 1 year batteries life
  • Cycle time: 250,000 cycle
  • Working Humidity: 0 – 95%
  • Working Temperature: -35°C ~ 55°C
  • Product Warranty: 1 years



Product Manual and Guidance:

  • Product Info Sheet: HERE
  • Installation Video: HERE
  • App Set Up Video: HERE
